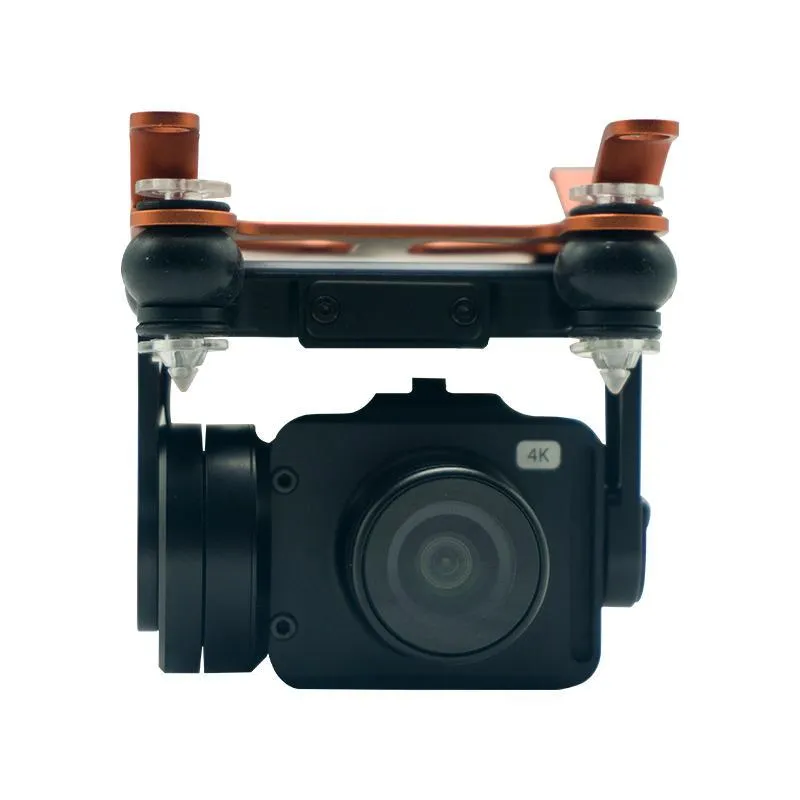

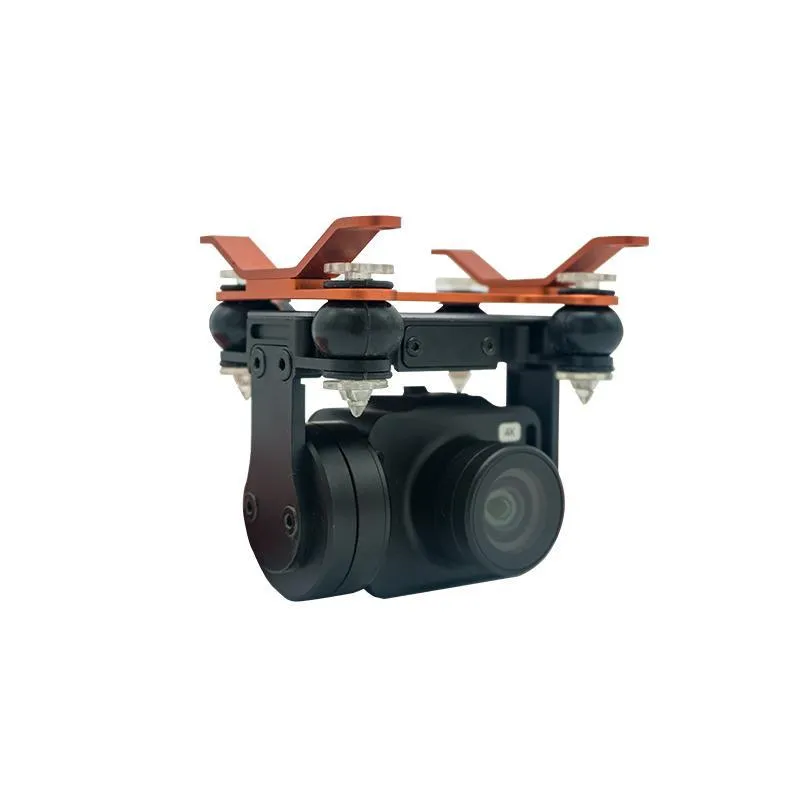

GC1-S is a 1-Axis gimbal 4K camera for Splash Drone 4 for 4k video and high resolution 12 Megapixel Photos. It is a more affordable option for users that need to accurately locate their target zone before remotely dropping attached payloads or bait.
IP67 Waterproof.
4K/30fps video | 12MP photo.
Changeable Lens for different lighting condition.
Waterproof: IP67
Axis: 1 axis (pitch)
Pitching angle: -90°to 0°
Maximum control speed: Pitching 60°/s
Weight: Approx. 145g
Size: 71*55*65mm
Image Sensor: 1/2.3" 12MP SONY CMOS
Lens: F4.53mm f/2.65
FOV: 92.6°
ISO range: 100 - 3200
Shutter speed: 16 - 1/16000 s
Picture Resolution: 4:3/16:9 12M
Photo shooting mode: A single shot
Burst: 3/5/10 pcs
Interval: 1/3/5/10s
Video Resolution: 4K: 3840*2160/30P | 2.7K: 2704*1520/60P | FHD: 1920*1080 30/60/120p | HD: 1280*720/240p
Max Video Stream: 64mbps
Picture Format: JPEG / RAW
Video Format: MP4 / MOV
Support Memory Card: Micro SD CARDS with a maximum capacity of 128GB, write speed ≥15 MB/s, and transmission speed of Class 10 or above or UHS-1 rating are supported
Working temperature: -10℃ to 40℃
