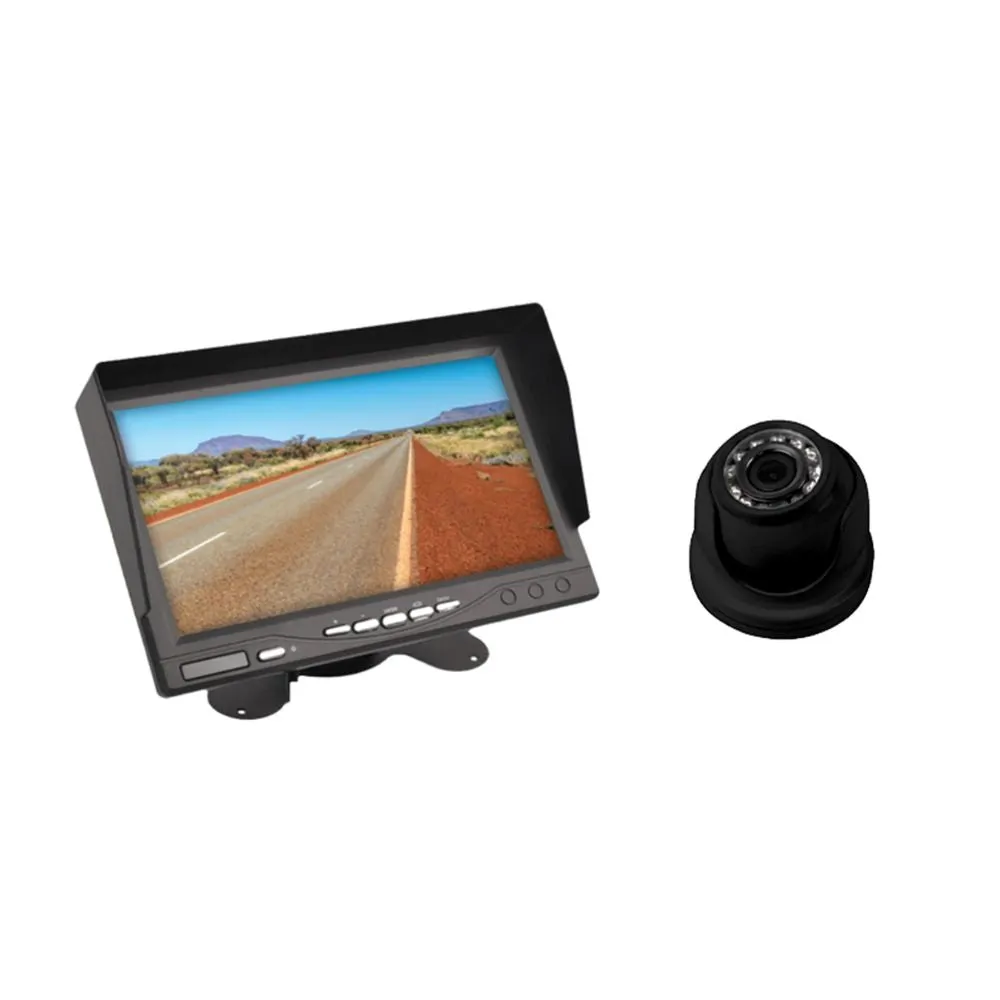

The Aussie Traveller Rear View Camera Kit is a must for your vehicle so that you can get a clear picture of what's behind you. The round eyeball style camera produces wide-angle, high-quality imagery for you to view on the 7-inch high-resolution display monitor. This kit has all that is required for easy installation and mounting. It is exactly what you need to keep a close eye on your 4x4, Caravan, RV, Camper Trailer, or Motorhome.

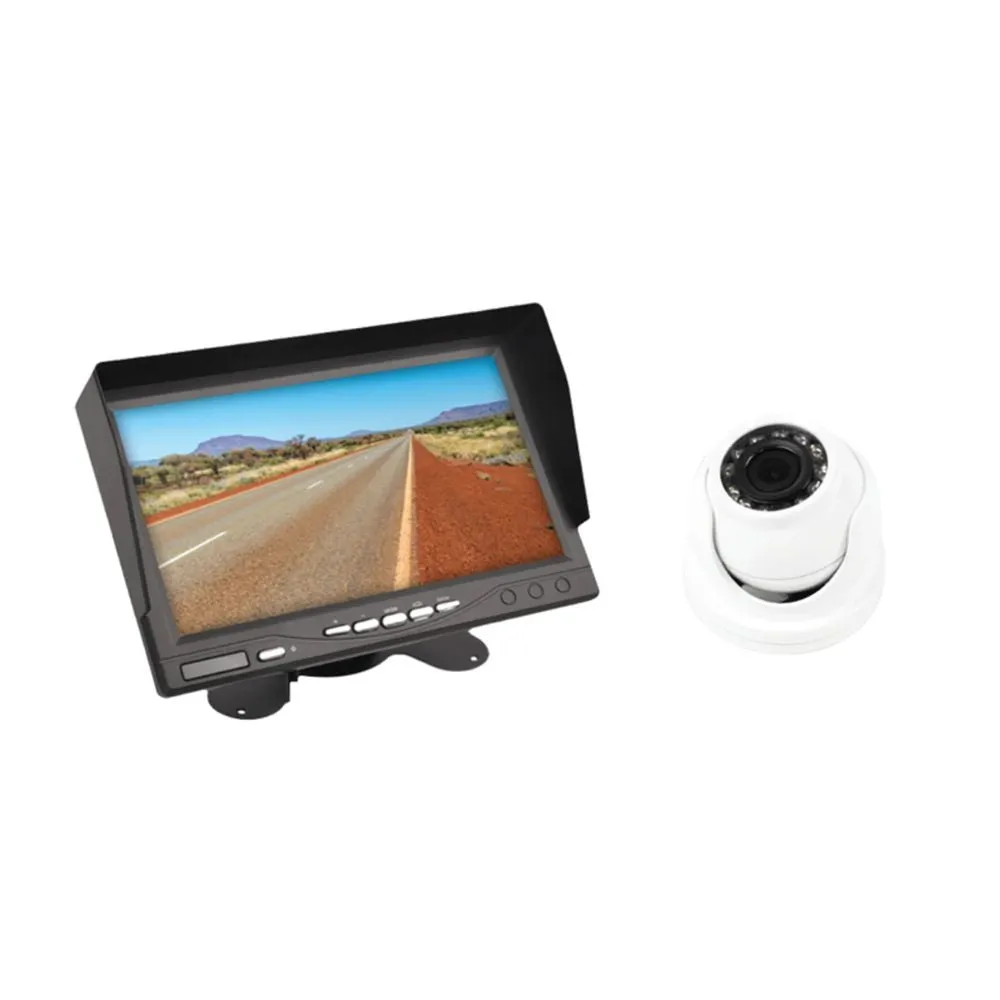

Our Rear View is also available with a Square Camera.

Features:

• Waterproof IP67 rating
• 12V powered camera & LCD display monitor
• 5m coiled cable for connection between the tow vehicle and the towed vehicle
• Easy to install - The screen can be mounted onto the front windscreen or dashboard via the supplied suction mount
• The camera features extremely low current draw yet delivers excellent resolution
• Uses standard 50Hz frequency with 120degree lens angle
• Cables also allow for RV installation such as Campers and Motorhomes

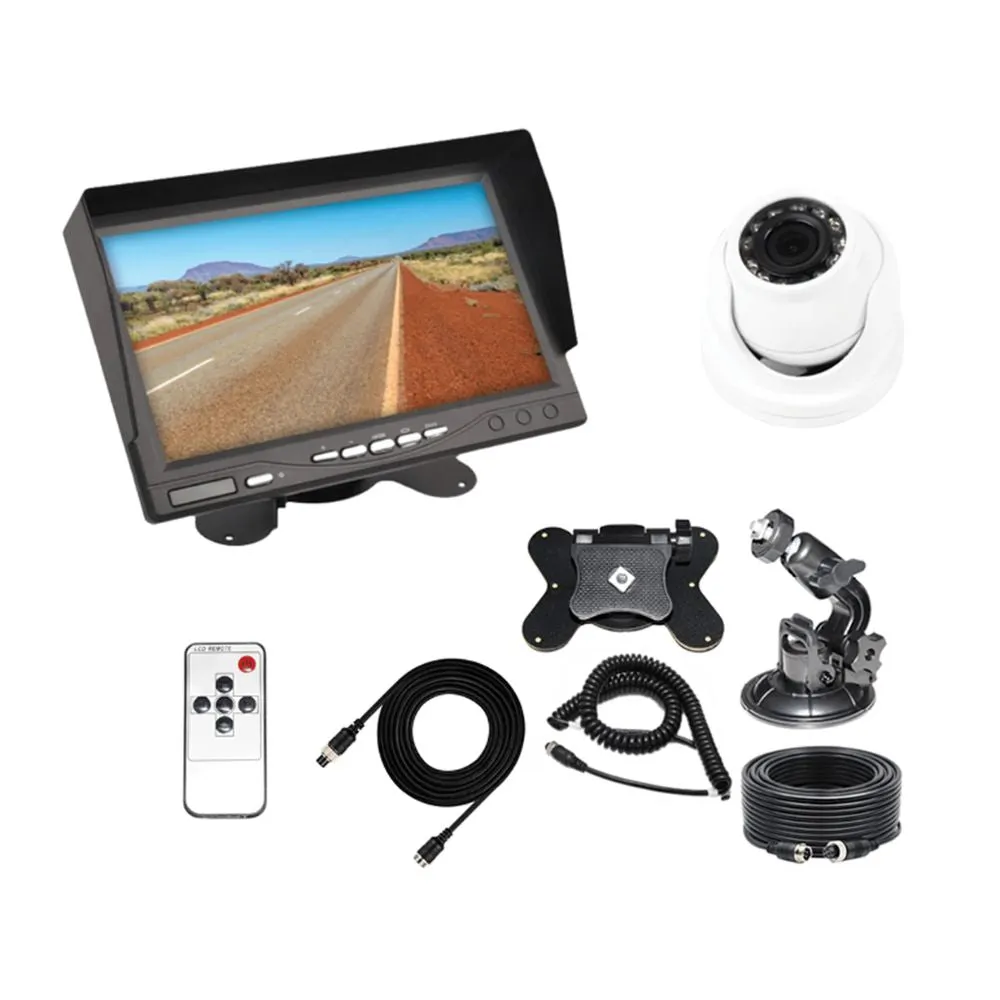

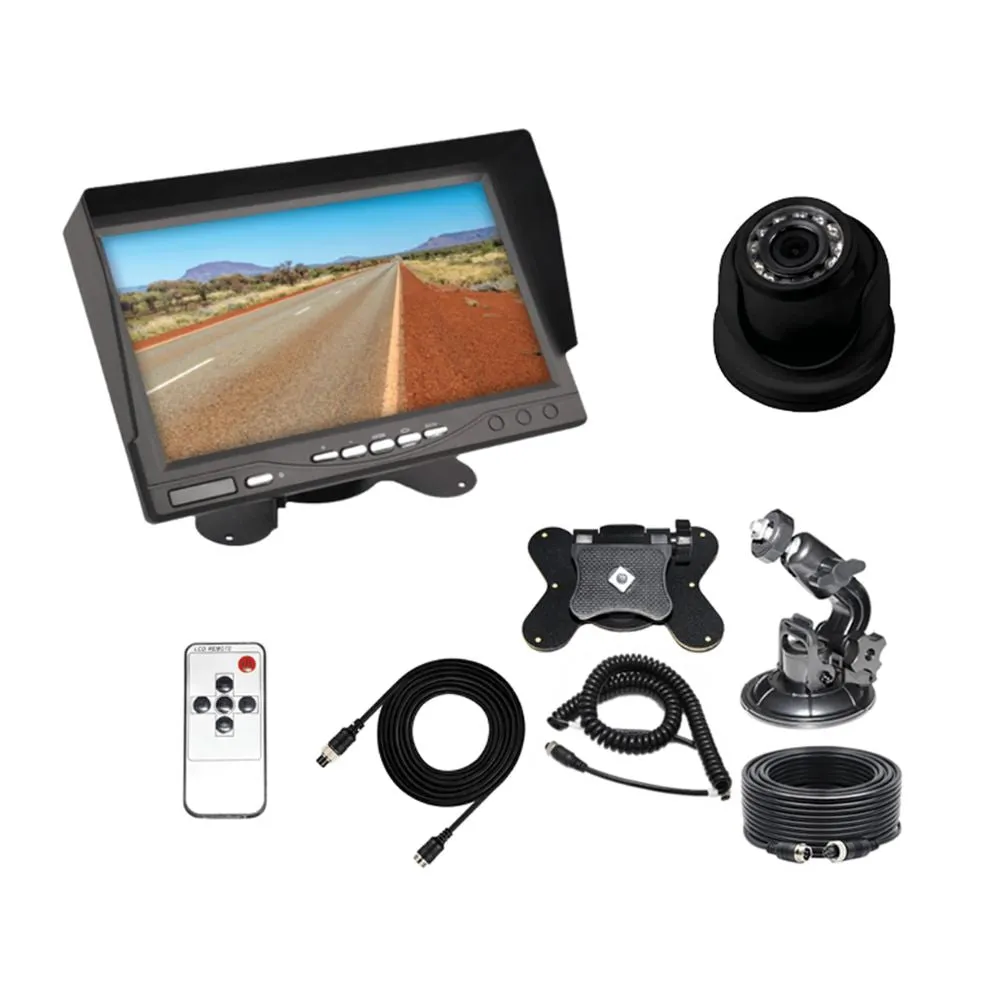

Kit Includes:

• 7” TFT LCD Monitor
• Window mount and fixed mount monitor brackets
• Remote control
• 15m towed vehicle cable
• 5m tow vehicle cable
• 5m coiled cable
• Installation manual

Specifications:
TFT LCD Monitor:

• Screen dimensions: 7 inch
• Resolution: 800 x 480 RGB
• System: PAL & NTSC auto switch
• Power: DC 12V
• Consumption: 3W
• Video: Two-way video input
• Rear View: The image can be changed Left & Right
• Operate Mode: Key button & Remote control
• Size: 180 x 120 x 50 (mm)

Camera:

• System: PAL/NTSC
• Effective Pixels: 648 x 488 pixels
• Sensing Area: 5.55um x 5.55um
• Scanning System: 2:1 interlace
• Sync System: Internal
• Resolution: 420 TV lines
• Horizontal Sync, Frequency: 15.625KHz / 15.73KHz
• Vertical Sync, Frequency: 50Hz / 60Hz
• Minimum illumination: 1.5lux/F1.2
• Video Output: 1.0VP-P.75Ohm
• Gamma Consumption: 0.45
• AGC: Auto
• S/N ratio: Better than 48Db
• White Balance: Auto
• Electronic Shutter: 1/60-1/15,000 Seconds
• BLC: Auto
• Current Consumption: 80Ma
• Power Supply: DC 12V
• Operating Temperature: -10°C~46°C RH95% MAX
• Storage Temperature: -30°C~60°C RH95% MAX
• Lens: 1.8mm F=2.0
• Lens Angle: 120°
• Waterproof Grade: IP67
