ATOTO AC-HD02LR 720P Rearview Camera with Live Rearview, HD Picture Quality, Night Vision/Waterproof
Compatible with ATOTO S8 / F7 Series / A6 KarLink/A6 PF Version
Not Compatible SA102 / A6Y

About this item

-HD 720P Rear-view Backup Parking Assist Camera, which can output 720P HD video signal. Special wiring design plus system firmware support allows user to have a live rearview even when your vehicle is moving ahead.

-It only works on selected ATOTO car stereos (F7 Series, S8 series and A6 KarLink / Performance versions) and the video image quality is much better than traditional cameras that output CVBS signal type. It is not compatible with other car stereo brands!

-If you own ATOTO S8 (Gen2), and it comes with virtual surround view feature, we highly recommend ATOTO AC-HD03LR camera instead.

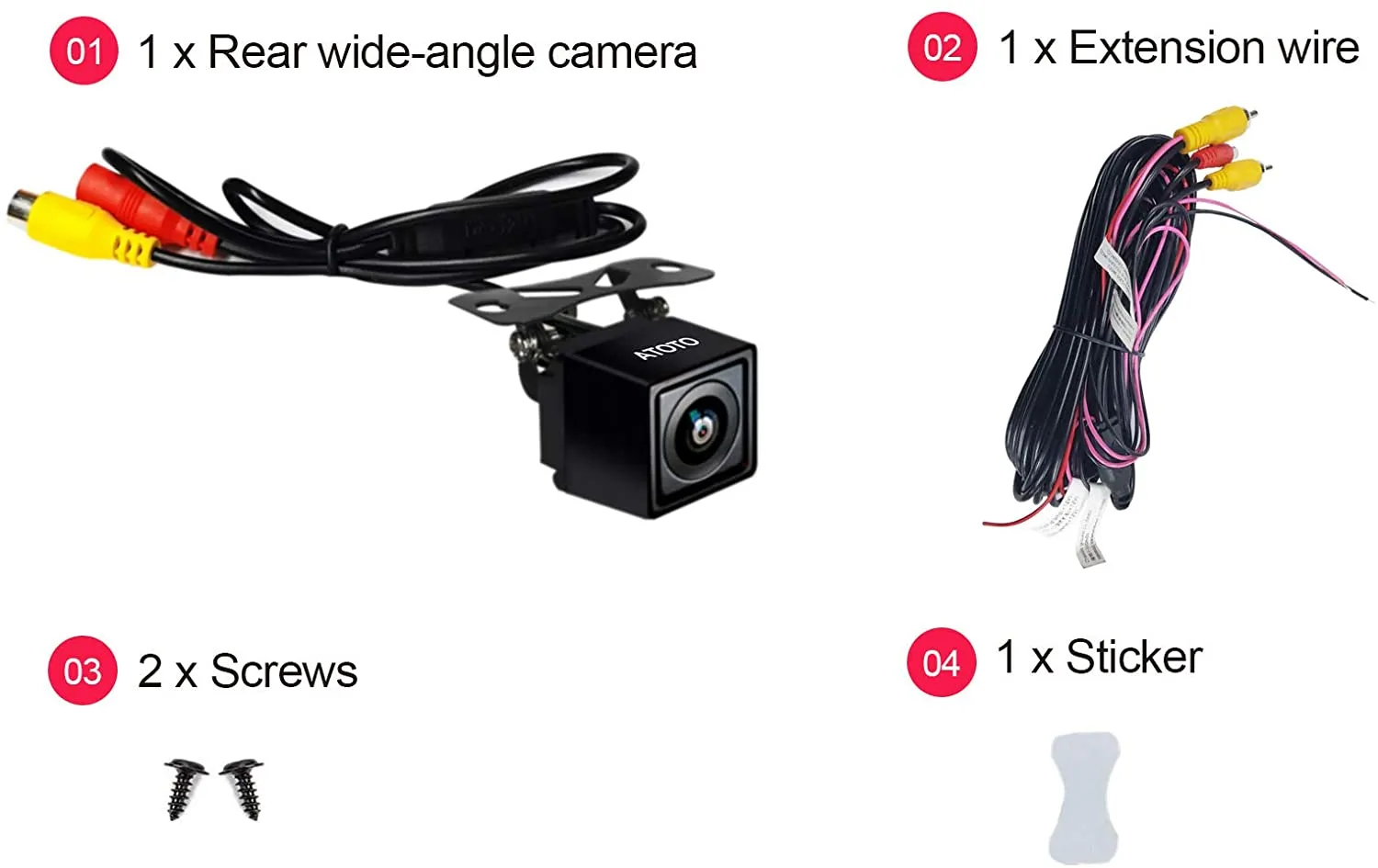

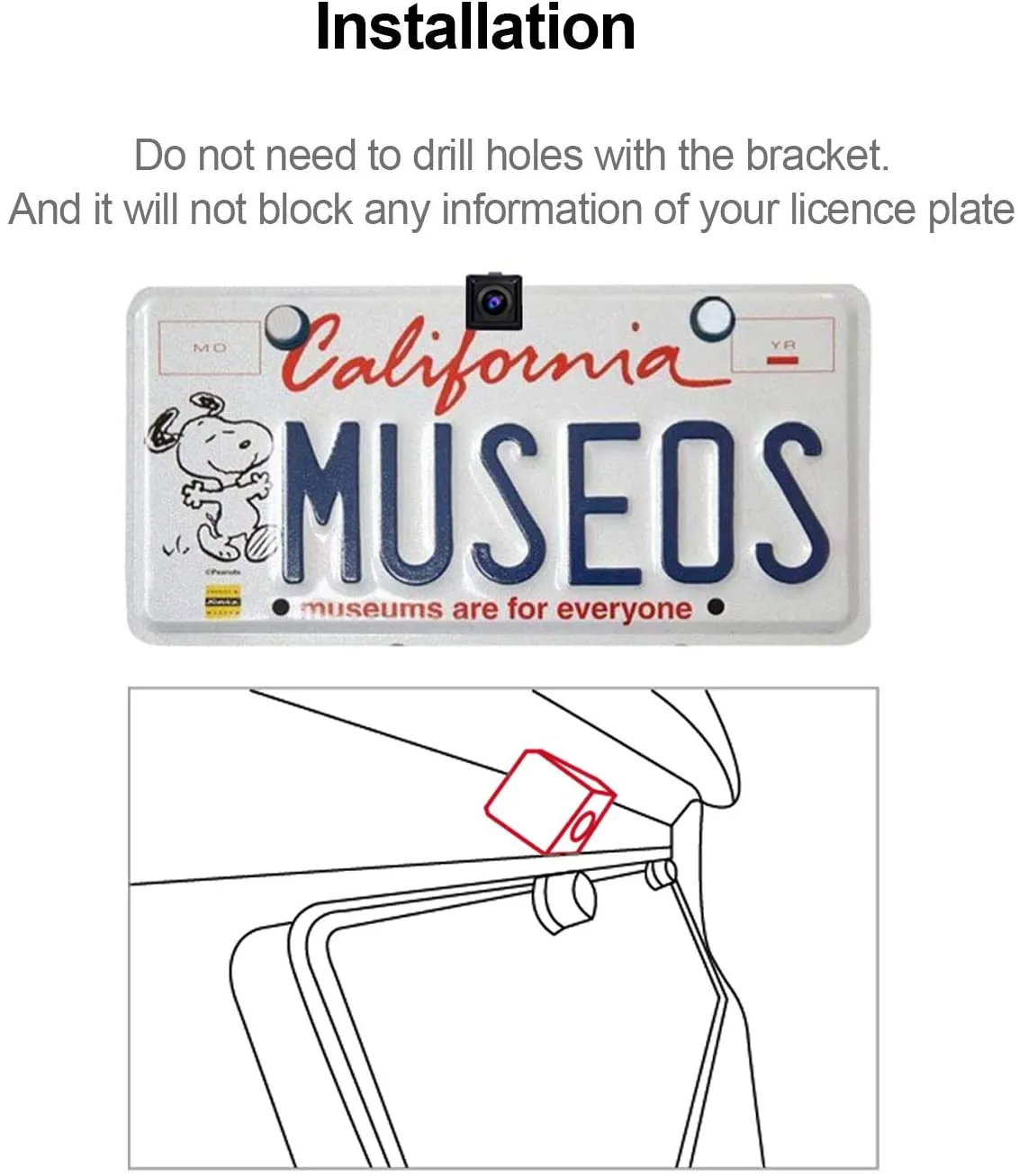

-HD Rear View Backup Parking Assist Camera with Installation Cables. Easy Installation.

Product Model: AC-HD02LR
Image sensor format: 1/2.9” CMOS
Pixels：1280(H)x720(V)
White balance: automatic
Backlight compensation: Yes
Noise reduction: 3D DNR
Video Frame rate: 720P@30FPS
Video Signal Out：Analogue HD signal, 1.0 Vp-p / 75Ω
Working Voltage: DC 3.3V～5V
Working Current: 130mA～150mA
Working Temperature：-30℃～ 80℃ (-22°F ～ 176°F)
Rear-view guideline: Not built-in, provided by Car stereo system
Waterproof Rate: IP67
Night-vision: YES

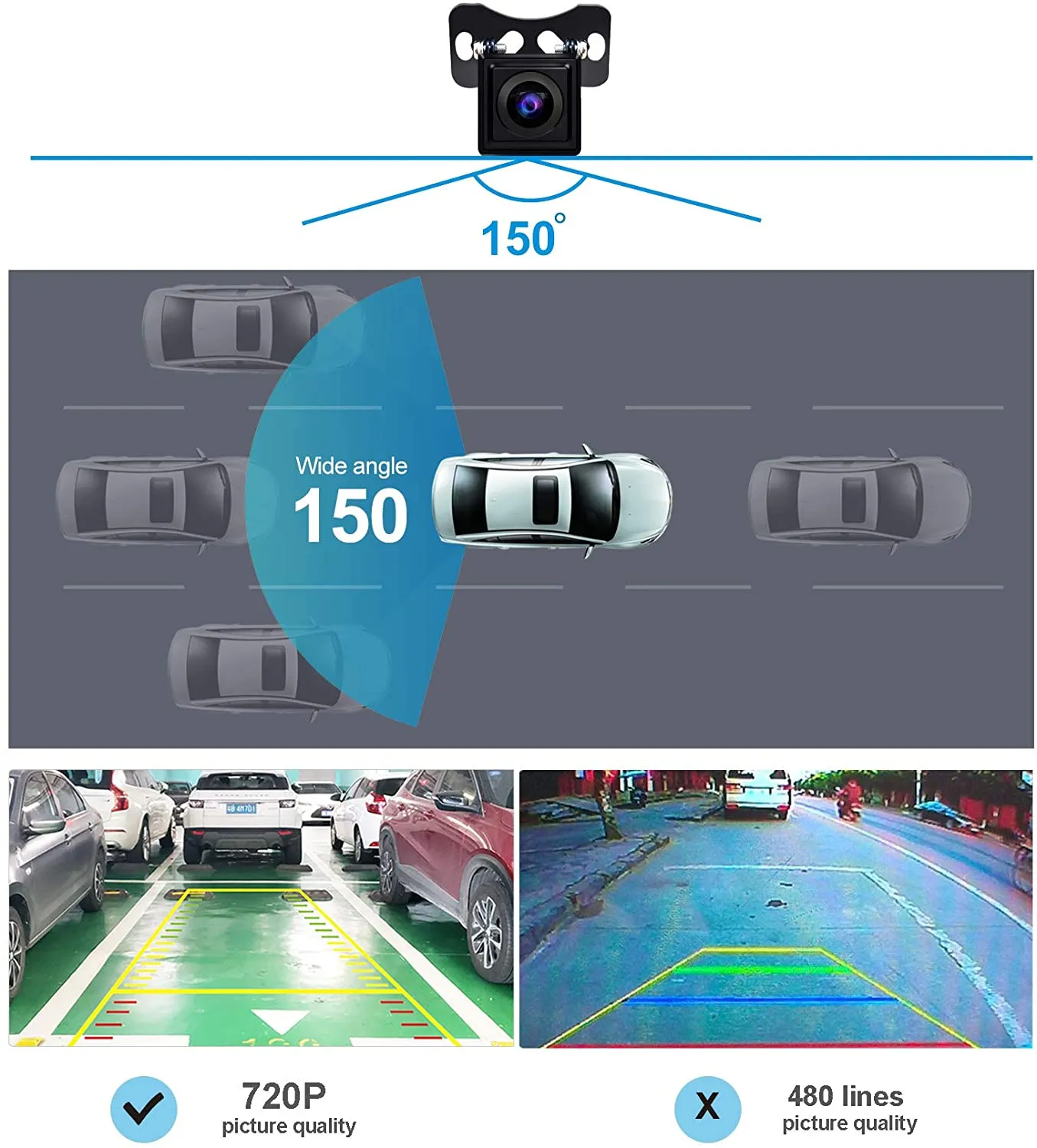

Lens Viewing Angle: 150 Degrees

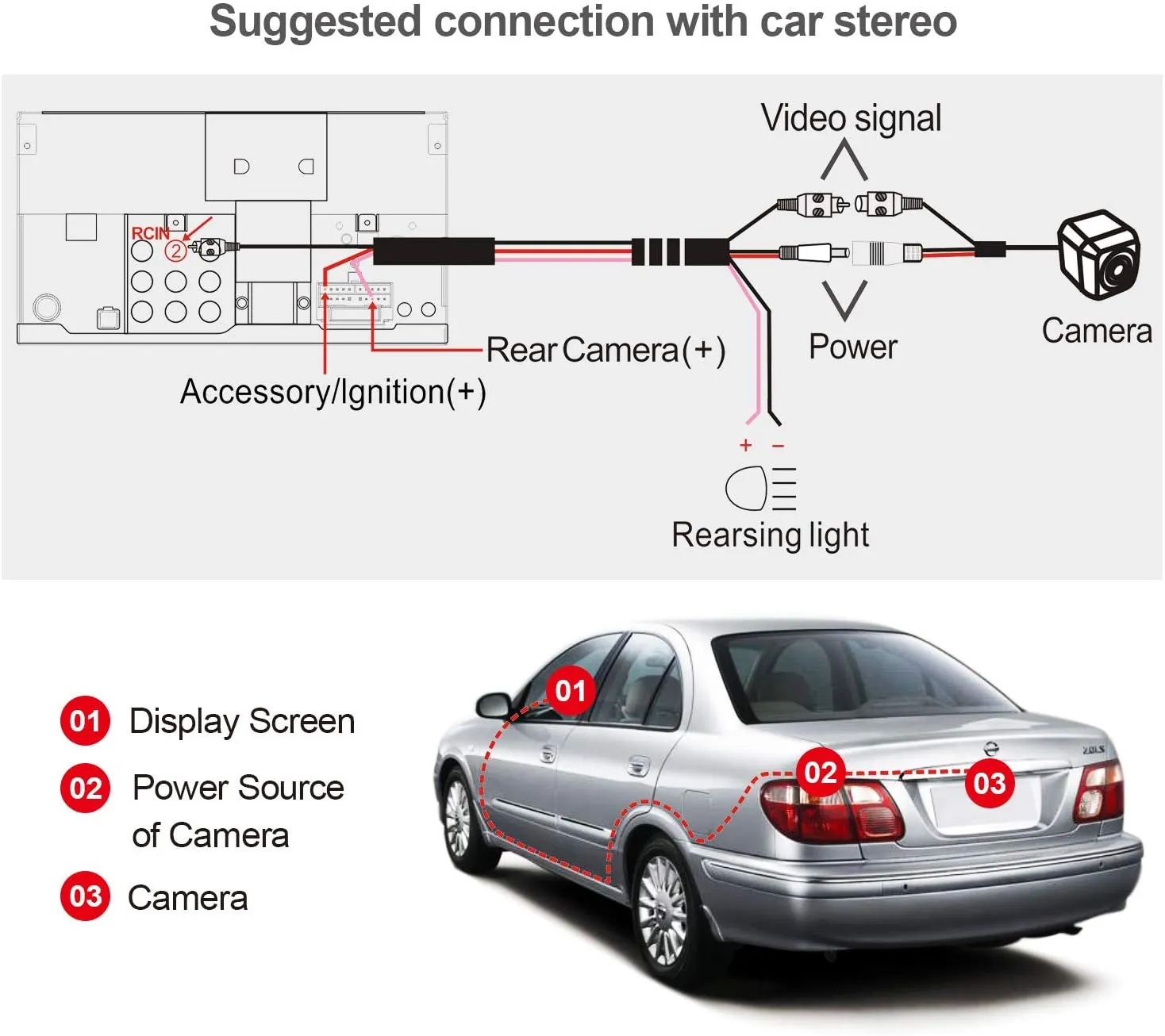

Powering method: powered by ATOTO head unit or vehicle's Accessory (ACC).
Rearview Image Access: (1).When vehicle is in reverse gear, the rearview will display on the headunit display; (2). Manually run Rearview app when vehicle is moving ahead, or use steering wheel keys (if applicable). For selected S8 (Gen2) modes that come with Hand Gesture operation, gesture control is available
