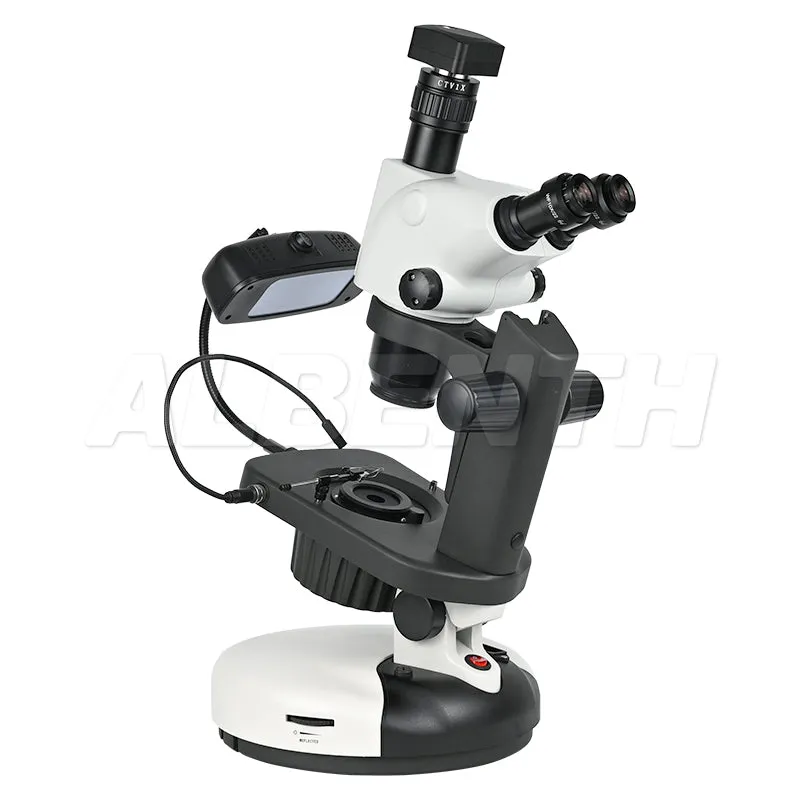

The RXT626-VG1-5.1M is a professional high-quality jewelry microscope for jewelers.
It can examine stones, inspect jewelry for repairs, assist in appraisals and make imaging inventory fast and easy.
It offers professional performance with its 10:1 zoom ratio and 0.65X-6.5X magnification range. 45° inclined trinocular head, adjustable interpupillary distance, diopter adjustment and adjustable focus.
An included quality steel clamp allows for all directions of observation of gems.
The white microscope body has a holder that measures φ76mm, a focus travel of 115mm, and an adjustable stand angle of 0-38°.
Features such as adjustable abbe condenser and adjustable diopters make it possible to observe gems with high precision.
This model is lightweight and compact, designed for portability and convenience.
The camera on the RXT626-VG1-5.1M is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.
Camera comes with advanced video & image processing application AMZView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C , C#/VB.NET, DirectShow, Twain Control API;
Camera can be widely used in brightfield light environment and microscope image capture and analysis with moderate frame rate.

● 45° inclined trinocular head, adjustable interpupillary distance, diopter adjustment and adjustable focus.
● 10:1 zoom ratio and 6.5X-65X magnification range.
● The microscope body has a holder that measures φ76mm, a focus travel of 115mm, a adjustable stand angle of 0-38°, and an 0-325° base rotatable.
● Large rotatable round stage with 7W gooseneck rectangular fluorescent lamp, 6V/20W darkfield halogen light, built-in darkfield condenser with iris, 3D gem clamp and graduations.
● An included quality steel clamp allows for all directions of observation of gems.

Specification:
● Viewing head: Trinocular viewing head, Inclined 45°. Interpupillary distance adjustment 54-76mm, Diopter adjustment /- 5.
● Eyepiece: WF10x/22mm focusable eyepieces, Eyeguards included
● Zoom objective: 0.65X-6.5X
● Zoom ratio: 10: 1
● Working distance: 110mm
● Head mounting size: 76mm in diameter
● C-Mount Adapter: 1X (Included)
● Dust cover: Yes (Included)
● Color: White or black
● Microscope body holder: φ76mm

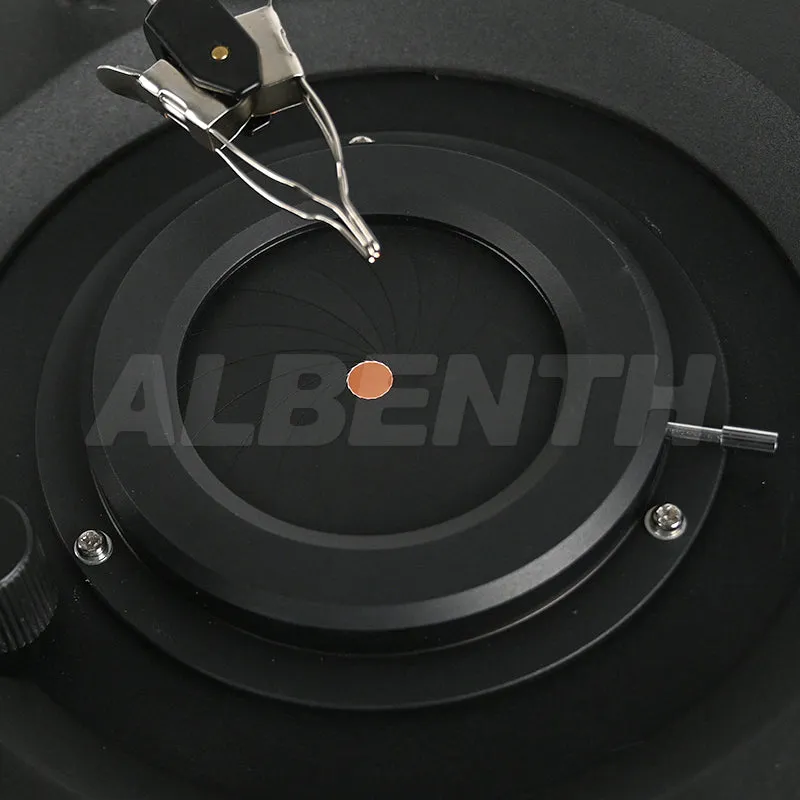

●Sliding baffle and iris diaphragm: 2mm-41mm
● 3pcs Illuminators:
- Overhead 7W Fluorescent lamp

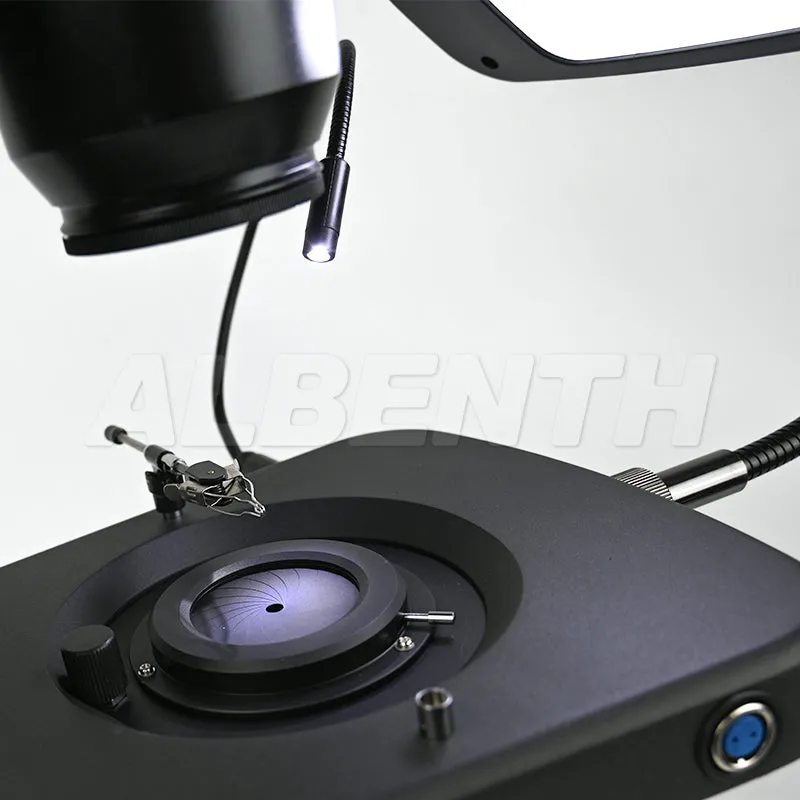

- LED Point Light

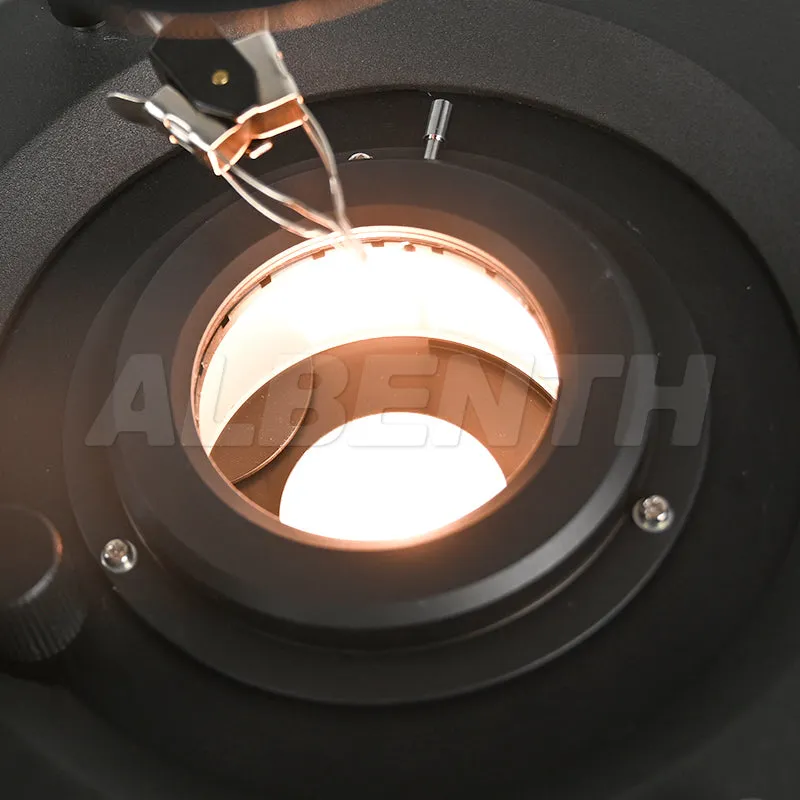

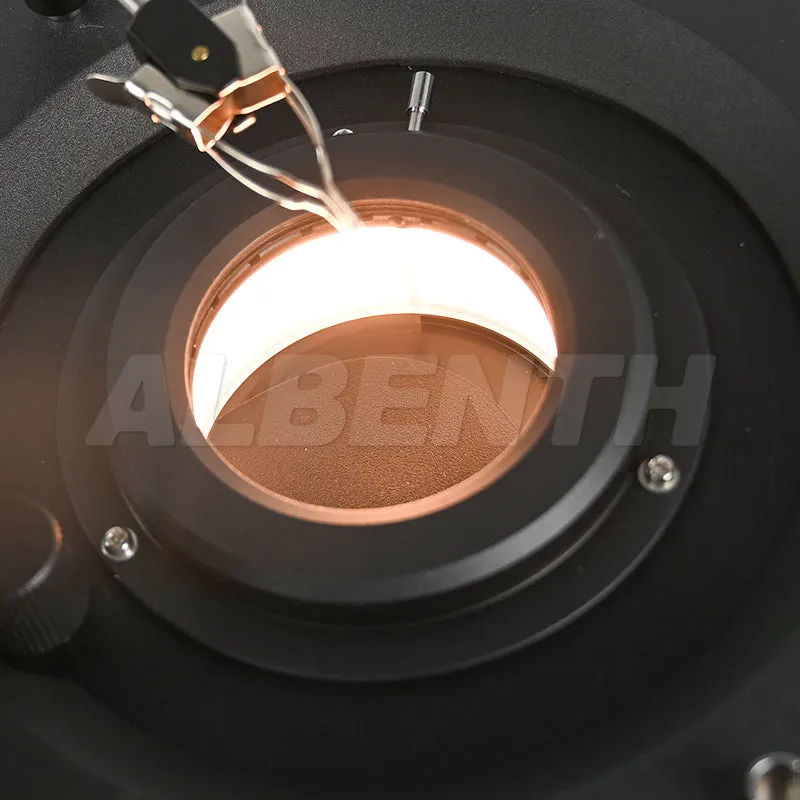

- 6V/20W Halogen illumination
● Focus travel: 115mm
● Gem Clamp: Quality steel clamp to hold the gem for all direction observations of gems
● Stand angle tiltable adjustment: 0-38°
● Base rotatable: 0°-325°

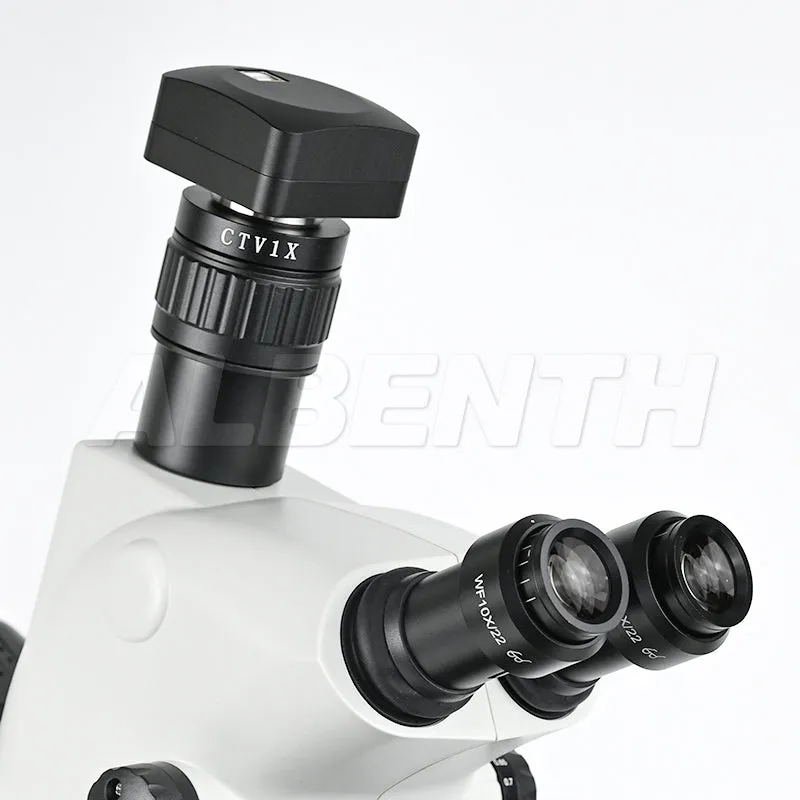

5.1M Camera
● Sensor & Size(mm): 5.1M/AR0521(C) 1/2.5“ (5.70x4.28)
● Pixel(μm): 2.2x2.2
● G Sensitivity Dark Signal:
- 18.8ke-/lux
- 73dB
- 40dB
● FPS/Resolution:
- 7.0@2592x1944
- 27.7@1296x972
- 100.5@648x486
● Binning: 1x1, 2x2, 4x4
● Exposure: 0.2ms~2000ms
● Spectral Range: 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used
● White Balance: ROI White Balance/ Manual Temp-Tint Adjustment
● Color Rendering Technique: Ultra Fine Color Engine
● Capture/Control SDK: Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C , C#/VB.NET, Python, Java, DirectShow, Twain, etc);
● Recording System: Still Picture and Movie
● Cooling System*: Natural
● Operating Temperature: -10 °C~ 50 °C
● Storage Temperature: -20 °C~ 60 °C
● Operating Humidity: 30~80%RH
● Storage Humidity: 10~60%RH
● Power Supply: DC 5V over PC USB Port
● Operating System:
- Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit)
- OS X (Mac OS X), Linux
● PC Requirements:
- CPU: Equal to Intel Core2 2.8GHz or Higher
- Memory: 2GB or More
- USB port: USB2.0 High-speed Port
- Display: 17" or Larger
- CD-ROM

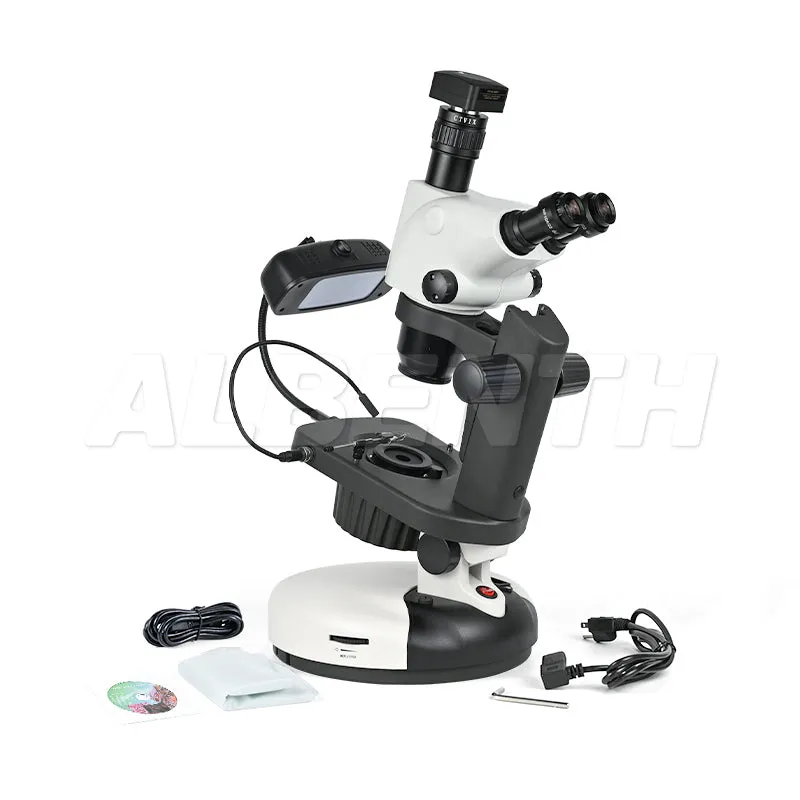

Packing List:
1x 0.65X-6.5X Trinocular Microscope Body
1x Pair WF10X/22mm eyepieces
1x C-Mount Camera Adapter 1X
1x RT20U-5.1M series camera
1x USB2.0 cable /2.0m
1x CD (Driver & utilities software, Ø12cm)
1x Gem Stand Built-in Transmitted Light
1x LED Point Light
1x 7W Fluorescent Lamp
1x Gem Tweezers
1x Power Cable
1x Dust Cover
