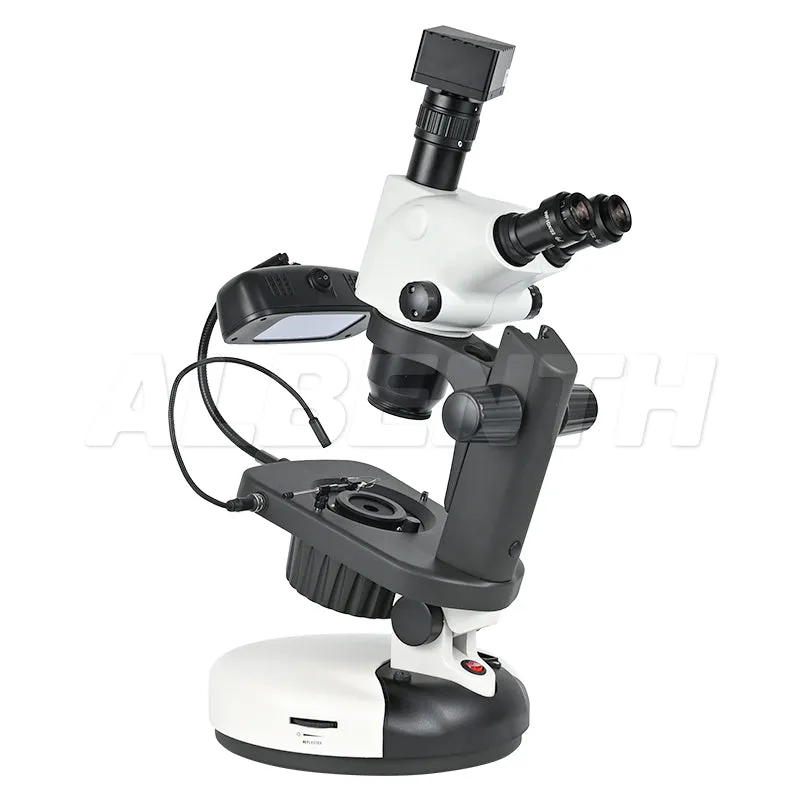

The RXT626-VG1-4KPB is a professional high-quality jewelry microscope for jewelers.
It can examine stones, inspect jewelry for repairs, assist in appraisals and make imaging inventory fast and easy.
It offers professional performance with its 10:1 zoom ratio and 0.65X-6.5X magnification range. 45° inclined trinocular head, adjustable interpupillary distance, diopter adjustment and adjustable focus.
An included quality steel clamp allows for all directions of observation of gems.
The white microscope body has a holder that measures φ76mm, a focus travel of 115mm, and an adjustable stand angle of 0-38°.
Features such as adjustable abbe condenser and adjustable diopters make it possible to observe gems with high precision.
This model is lightweight and compact, designed for portability and convenience.
● 45° inclined trinocular head, adjustable interpupillary distance, diopter adjustment and adjustable focus.
● 10:1 zoom ratio and 6.5X-65X magnification range.
● The microscope body has a holder that measures φ76mm, a focus travel of 115mm, a adjustable stand angle of 0-38°, and an 0-325° base rotatable.

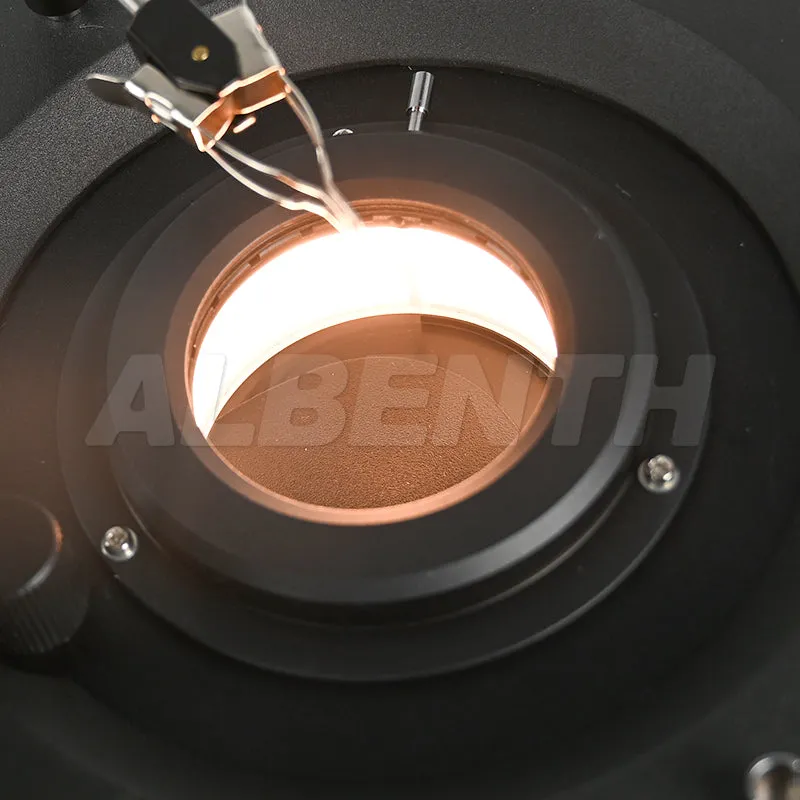

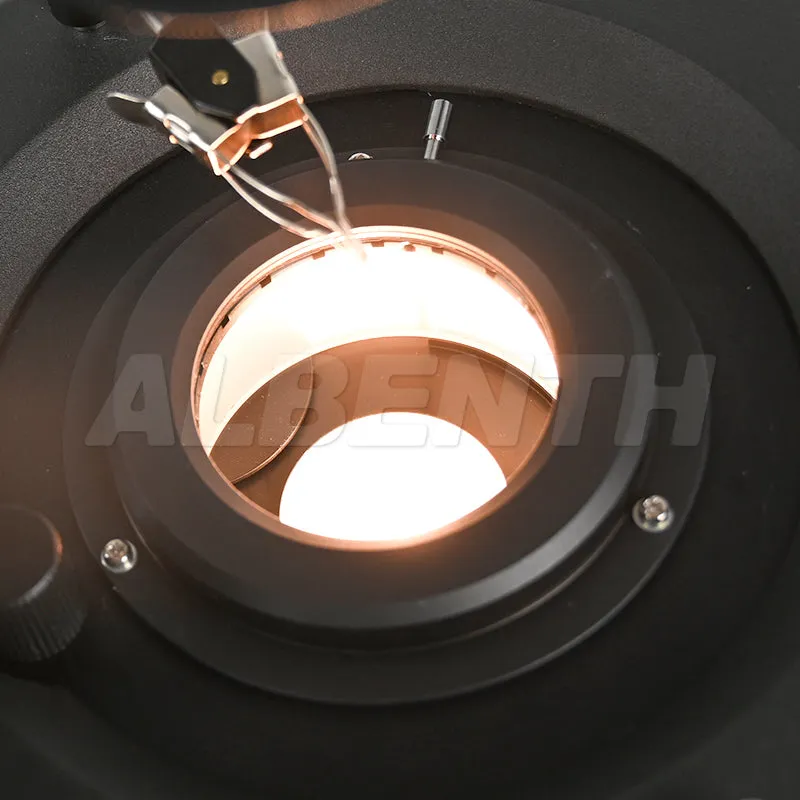

● Large rotatable round stage with 7W gooseneck rectangular fluorescent lamp, 6V/20W darkfield halogen light, built-in darkfield condenser with iris, 3D gem clamp and graduations.
● An included quality steel clamp allows for all directions of observation of gems.
● 1/1.8'' CMOS sensor
● Camera frame Rate 4K@60fps
● Designed for outstanding optical performance in the entire field of view
● Large practical working distance
● C-Mount thread
Specification:
● Viewing head: Trinocular viewing head, Inclined 45°. Interpupillary distance adjustment 54-76mm, Diopter adjustment /- 5.
● Eyepiece: WF10x/22mm focusable eyepieces, Eyeguards included
● Zoom objective: 0.65X-6.5X
● Zoom ratio: 10: 1
● Working distance: 110mm
● Head mounting size: 76mm in diameter
● C-Mount Adapter: 1X (Included)
● Dust cover: Yes (Included)
● Color: White or black
● Microscope body holder: φ76mm

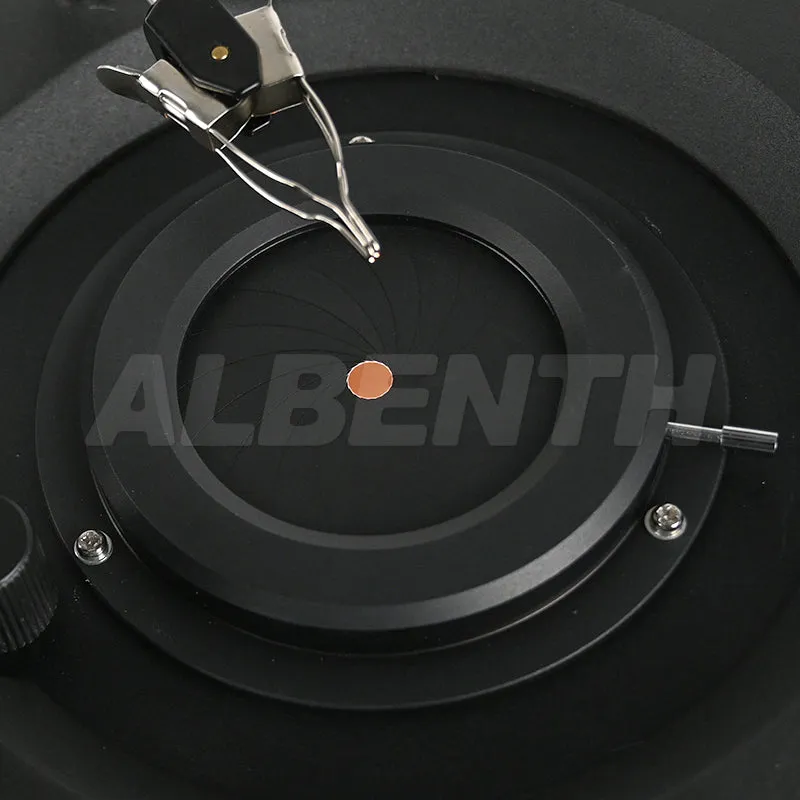

●Sliding baffle and iris diaphragm: 2mm-41mm
● 3pcs Illuminators:
- Overhead 7W Fluorescent lamp

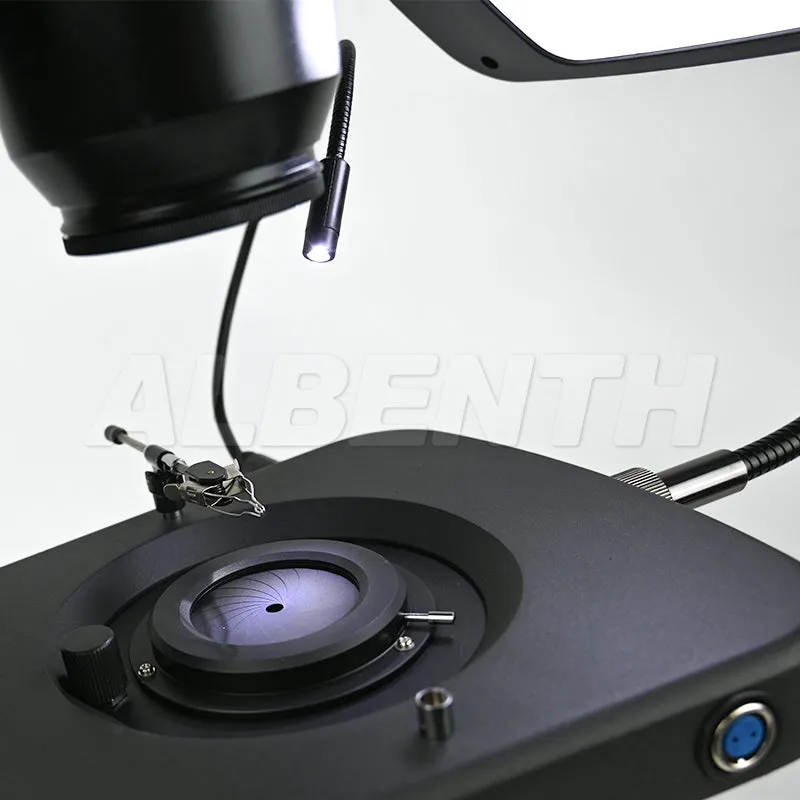

- LED Point Light
- 6V/20W Halogen illumination
● Focus travel: 115mm
● Gem Clamp: Quality steel clamp to hold the gem for all direction observations of gems
● Stand angle tiltable adjustment: 0-38°
● Base rotatable: 0°-325°

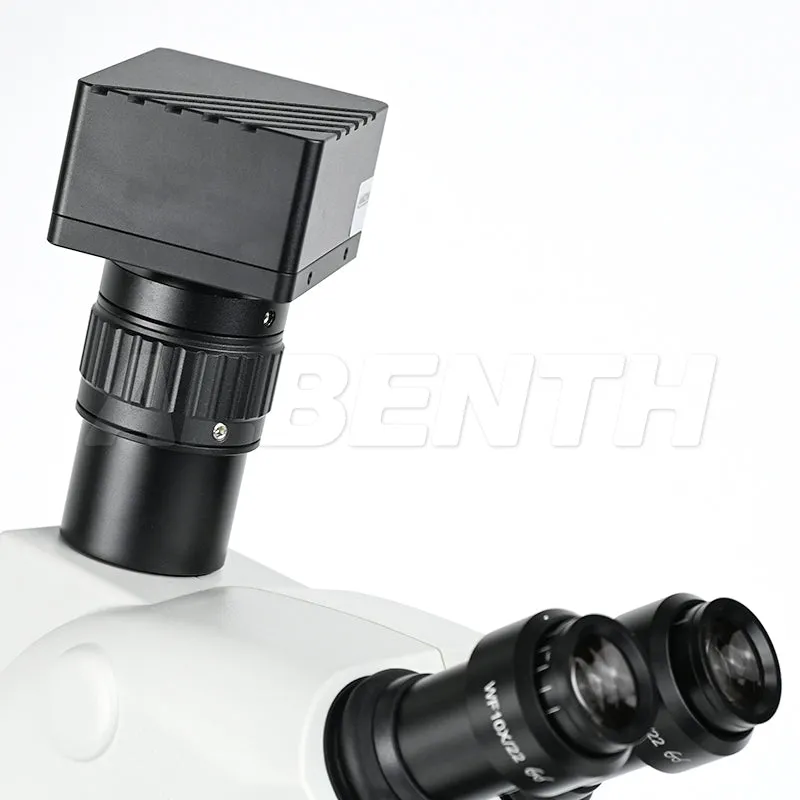

8MP Camera
● Focus: Manual focus
● Image Sensor: 8.0 MP, Color CMOS Sony Exmor/Starvis sensor
● Sensor Dimensions: 1/1.8”
● Pixel Size (resolution): 2*2μm
● Output: USB2.0, USB 3.0, HDMI, LAN, USB flash drive Support camera internal storage
● Scanning: Progressive scan CMOS image sensor
● Frame Rate: HDMI:4K@60fps, LAN: 4K@30fps/ 1080P@60fps
● Built-in Software function:
- Zoom, Manual/Auto Brightness, Gian, Saturation, Contrast, Sharpness, HDR, Snap, video recording, White Balance, Date storage, Image Freeze, Picture Quality Display Text,
- Length measuring: Straight length, broken line length, curve line length, the distance between parallel lines,point-line distance
- Center distance of circles: Center distance of circles
- Geometry measurement: Line length, radius setting circle, two points setting circle, three points setting circle, concentric circles
- Geometry area: Polygon and square
● Input Power: DC12V
● Camera mount type: C-Mount thread
● White Balance: Manual, Auto
● Exposure: Manual, Auto
● Shutter Speed: 1/50s(1/60s)-1/10000s
● SNR: >50dB
● Method of operation: Operation by mouse
● Language: Chinese, English
● Storage Environment: -20° – 60°C, 10 - 60% RH, non-condensing
● Operating Environment: -10 ° – 50°C, 30 - 80% RH, non-condensing
● Housing Material: Aluminium
● Dimensions: 80*66*43mm
● Weight: 0.57kg

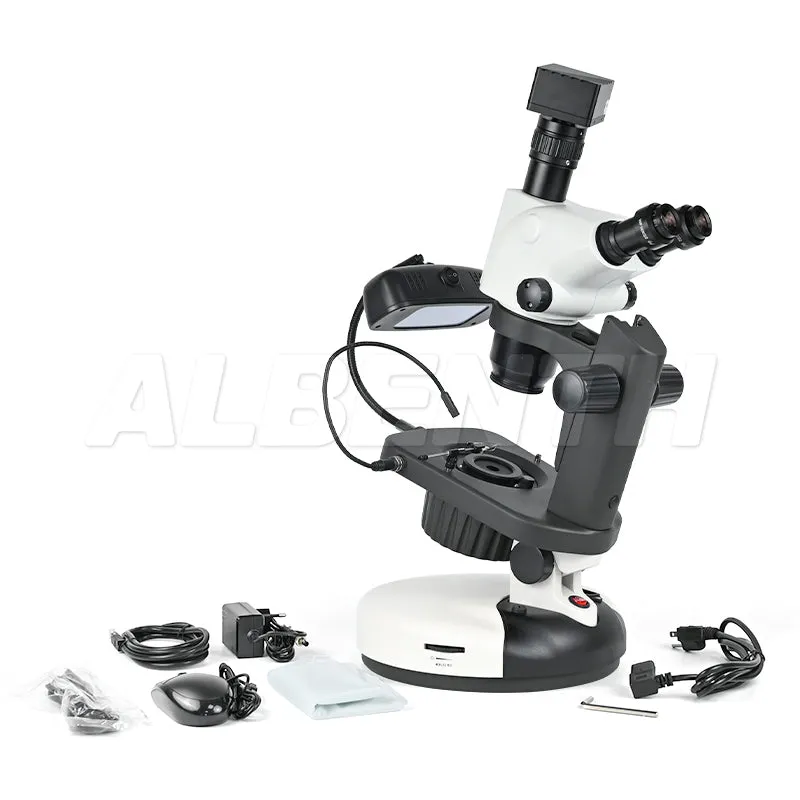

Packing List:
1x 0.65X-6.5X Trinocular Microscope Body
1x Pair WF10X/22mm eyepieces
1x C-Mount Camera Adapter 1X
1x RT20U-5.1M series camera
1x USB2.0 cable /2.0m
1x CD (Driver & utilities software, Ø12cm)
1x Gem Stand Built-in Transmitted Light
1x LED Point Light
1x 7W Fluorescent Lamp
1x Gem Tweezers
1x Power Cable
1x Dust Cover
